Diminished

I. chord

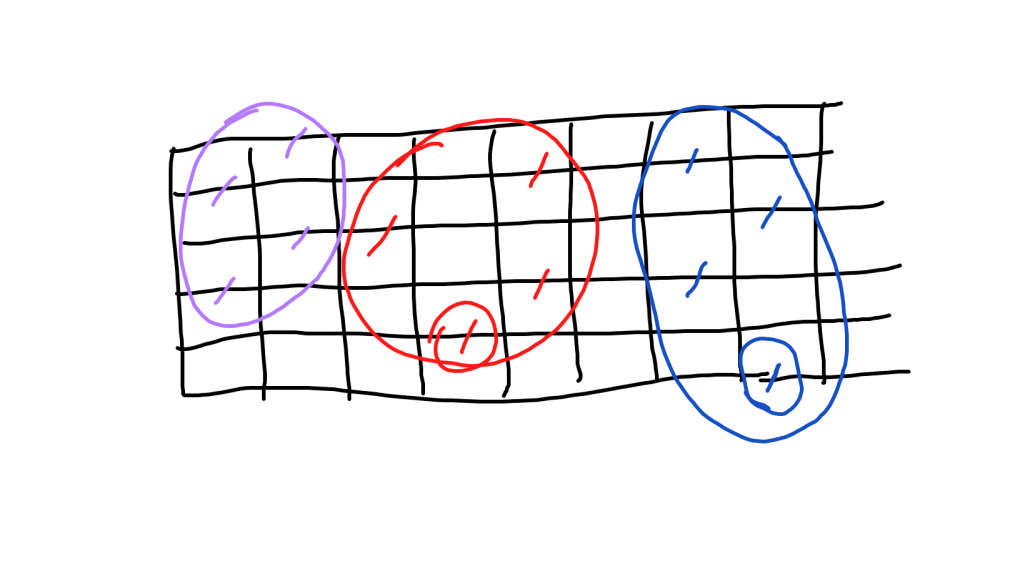

this diagram shows 3 different ways to play a diminished chord

top 4-string diminished chord

each of these chords can have 4 different names, as color-coded

advanced diminished chord embellishment

take any chord tone up a whole step to embellish the chord

ex: x3424x is a Cdim7 chord; play x3426x to Cdim7(add 11) or x3444 for B/C

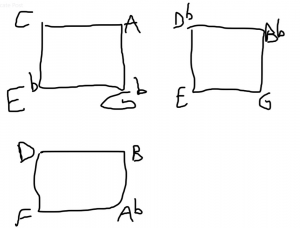

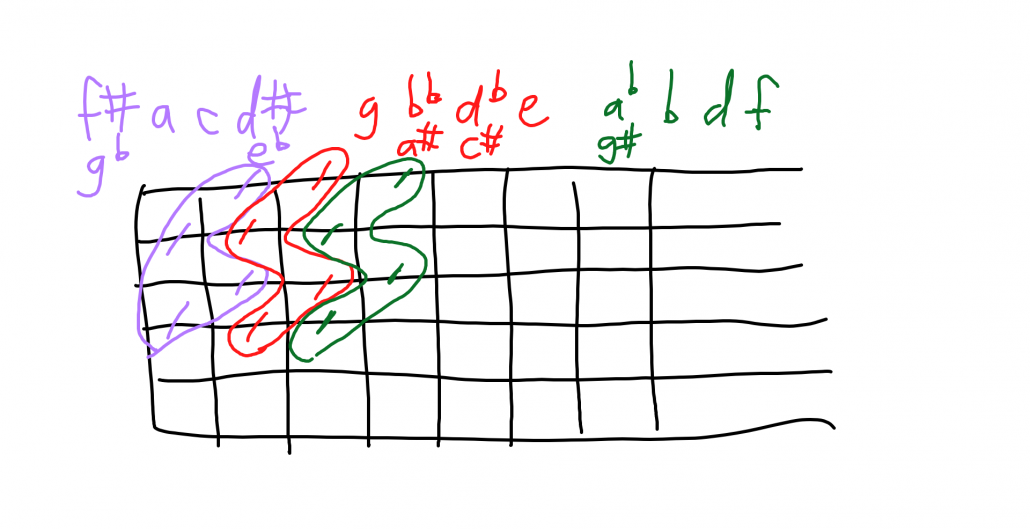

II. the 3 diminished families

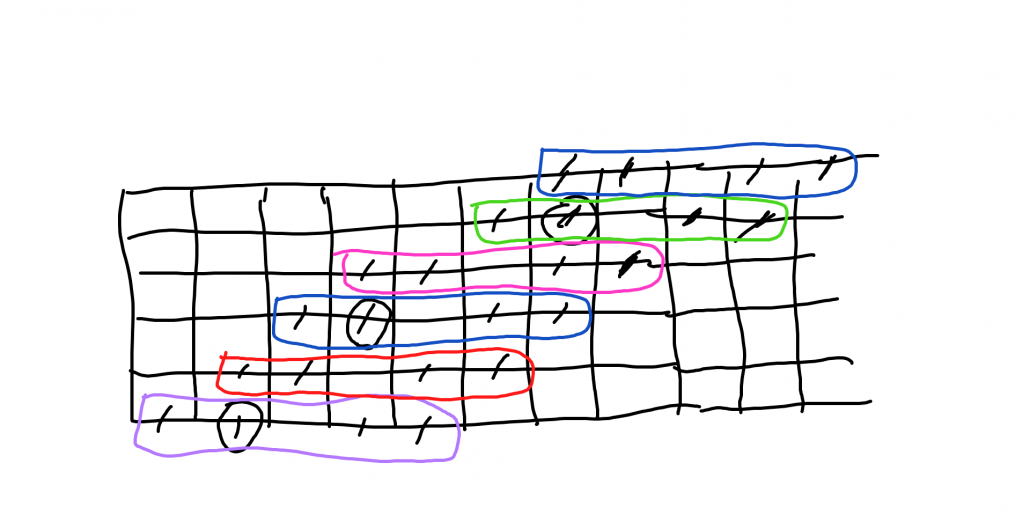

III. scale

uses of the diminished scale

1. Passing Chords (Chromatic Movement)

Diminished 7th chords are frequently used as chromatic passing chords between diatonic chords, creating smooth voice leading by moving one or more notes up or down by half-step.

Example:

C – C#°7 – Dm

  • The C#°7 connects tonic (C) to the ii chord (Dm) by raising the root one half-step.

  • This creates smooth motion in the bass and upper voices.

  • Common in jazz, pop, and even classical music.

This usage is especially powerful because it:

  • Adds color and suspense

  • Introduces tension that resolves smoothly

  • Makes simple progressions sound more sophisticated


2. Secondary Diminished (Leading-Tone Chords)

A diminished 7th can act as a substitute for a dominant 7b9 chord (e.g., G7b9) that resolves to the tonic.

Why?

The diminished 7th built on the 3rd of the dominant chord contains nearly the same notes.

Example:

In C major:

  • G7b9 = G–B–D–F–Ab

  • B°7 = B–D–F–Ab

So B°7 can replace G7b9. It resolves to C because of its strong leading tones.

Application:

Am – B°7 – C
Or
Em – E7 – Am becomes Em – G#°7 – Am


3. Modulation / Key Changes

Because diminished 7th chords are symmetrical and enharmonic, they are fantastic tools for modulation.

Example:

C – C#°7 – D7 – G
Here:

  • C#°7 can resolve to D7, pulling you toward G major.

  • It acts as a pivot, letting you jump into a new key seamlessly.

Why It Works:

A single diminished chord can resolve to multiple keys depending on interpretation:

  • C#°7 = C# – E – G – Bb

    • Resolves to Dm

    • Resolves to G7

    • Resolves to Bb


4. Common in Intros, Turnarounds, and Endings

Diminished 7th chords add elegance and motion in intros and outros. They work great in:

  • Jazz turnarounds:
    | Cmaj7 | C#°7 | Dm7 | G7 |

  • Blues/jazz intros and tags:
    C – C#°7 – Dm – G7 – C

The tension they create feels like a breath before the resolution.


5. Ornamentation (Color/Tension Without Functional Role)

Sometimes, diminished 7th chords are used for flavor rather than function.

Example:

  • You might see a diminished chord appear briefly between two unrelated chords in a jazz or fingerstyle guitar arrangement.

  • The goal is tension and release, not diatonic logic.


6. Rootless V7b9

In jazz:

  • A diminished 7th can replace a dominant chord or ii-V

Example:

  • Instead of | G7b9 | Cmaj7 |

  • Use | D°7 – Cmaj7 |

use G half-whole dim for G7b9

arpeggio

common songs with diminished chords

“Every Time You Go Away” by Paul Young.

https://tabs.ultimate-guitar.com/tab/paul-young/every-time-you-go-away-chords-603281

“I’ve Got Friends in Low Places” by Garth Brooks.

https://tabs.ultimate-guitar.com/tab/garth-brooks/friends-in-low-places-chords-1087784

“Michelle” by the Beatles.

https://tabs.ultimate-guitar.com/tab/the-beatles/michelle-chords-17324

transpose -1 at bottom; capo fret 1

“This Love” by Maroon 5.

https://tabs.ultimate-guitar.com/tab/maroon-5/this-love-chords-786697

more advanced analysis of diminished chords

how they can be interweaved with an extended I chord and how diminished chord is a rootless dominant 7 b9 chord

altered scale vs. half-whole diminished

role of diminished chords
